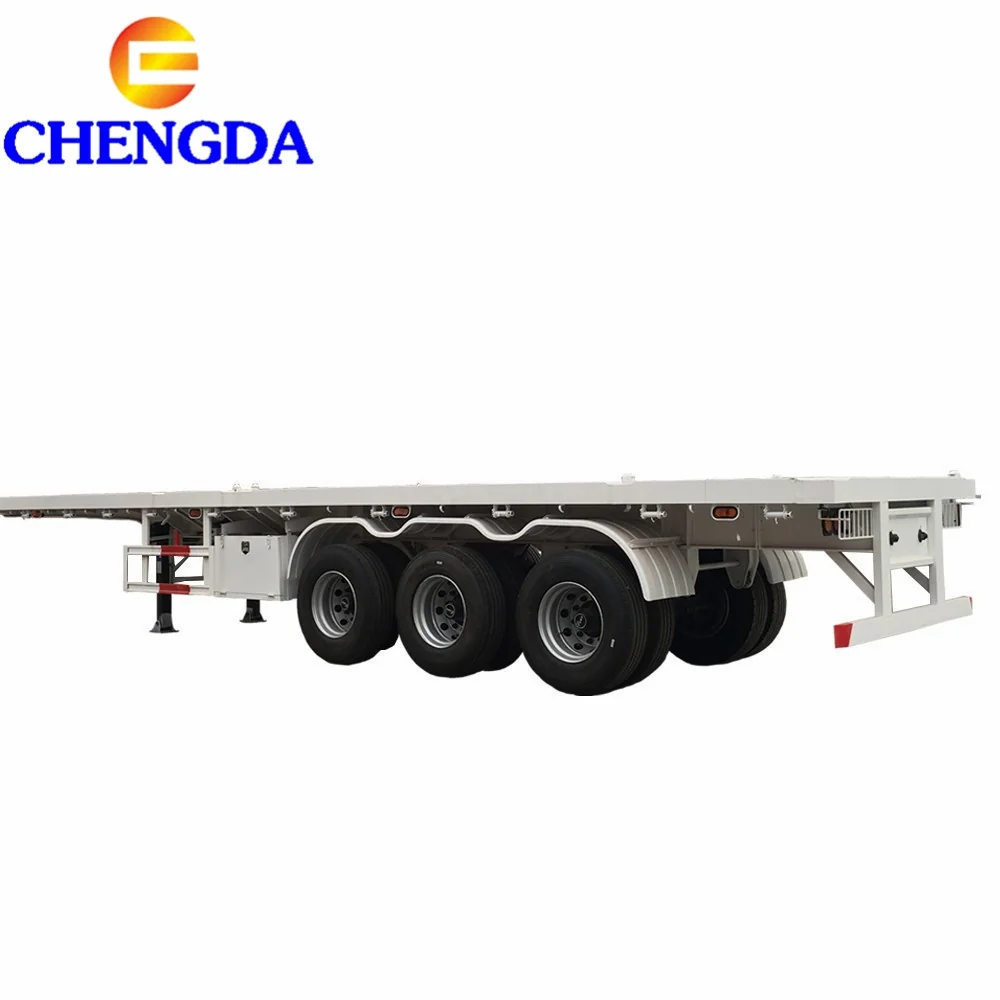

40ft Flatbed Semi Trailer

The 40ft flatbed semi trailer is designed and built to deliver exceptional haulage performance, supreme structural strength, and high ROI for modern logistics operators. Featuring a high-tensile Q345B steel main frame and robust tri-axle suspension, this platform trailer excels at carrying 40ft ISO containers, two 20ft containers, and heavy bulk freight. It gives fleet owners an optimal combination of maximum payload capacity and long-term operational durability.

Send Inquiry 立即聊天

Chat Now

Product Details

40ft Flatbed Semi Trailer — Heavy-Duty Factory-Certified

Engineered for container shipping, heavy steel/timber transit, and bagged freight haulage. The 12,500 x 2,500 x 1,550 mm platform meets the standard 40ft ISO container size, with a 3-axle layout and 12 heavy-duty twist locks for secure intermodal handling. Brand new and factory-certified, built for long-haul reliability.

Interested? Contact us for pricing and availability.

Send Inquiry Now

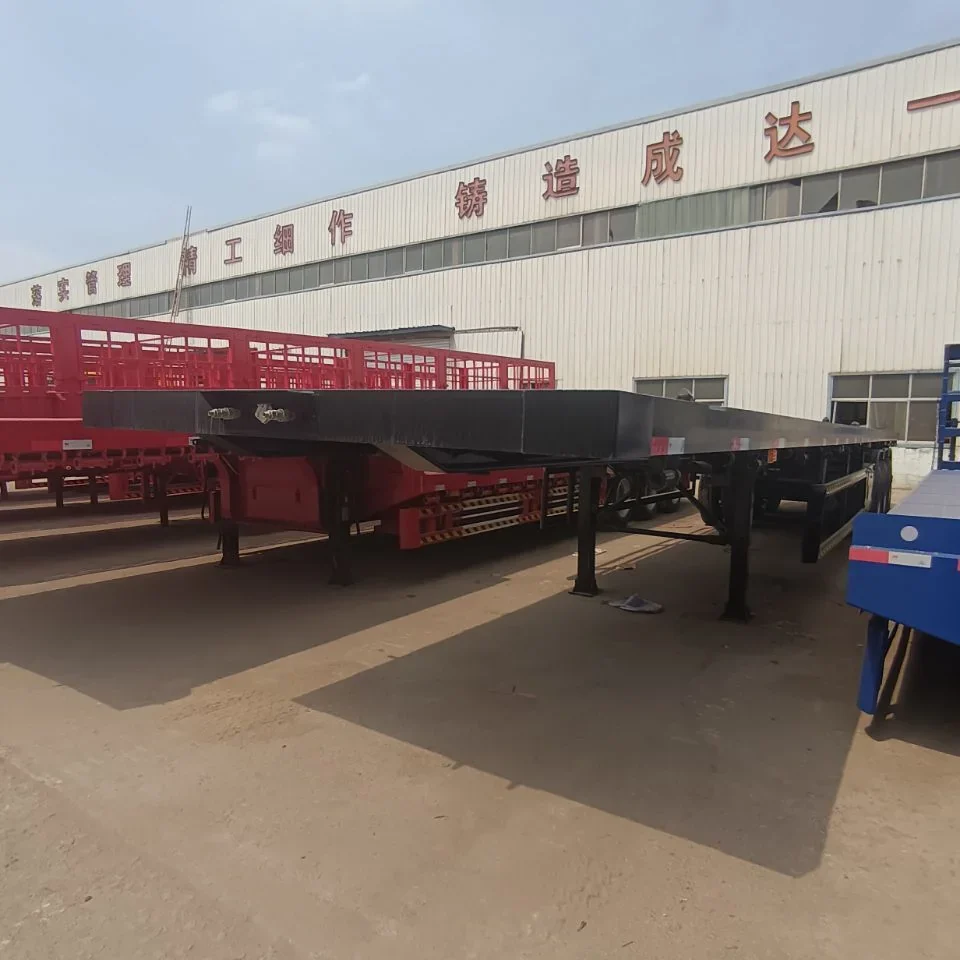

40ft flatbed semi trailer

Need a custom configuration? Tell us your requirements.

Customize Yours

Technical Specifications

Technical Parameter	Specification Detail
Chassis & Body
Vehicle Model	40ft flatbed semi trailer
Overall Dimensions	12,500 x 2,500 x 1,550 mm (Customizable)
Main Beam Material	Q345B Carbon Steel, Height 500 mm
Floor Plate	3 mm or 4 mm Chequered / Flat Steel Plate
Capacity & Running Gear
Payload Capacity	40,000 kg - 60,000 kg
Axle Brand & Quantity	3 Axles x 13T / 16T (FUWA / BPW / Heavy Duty Brand)
Landing Gear	JOST / Standard 28 Ton Two-Speed Manual Operation
Twist Locks	12 Sets of ISO Container Twist Locks

As vehicle specifications change or emission standards are upgraded, the above specifications are for reference only. Please contact us for the latest quote!

Join 500+ buyers who trust our factory-direct supply.

Talk to an Expert

Core Advantages and Key Features

High-Tensile Steel Main Beam

Q345B carbon steel welded via automatic submerged arc processes resists deformation under heavy payload stress.

Versatile Twist Lock Arrangement

12 precision ISO twist locks seamlessly secure either one 40ft container or two 20ft containers.

Heavy-Duty Tri-Axle Suspension

Premium 13T/16T axles with reinforced mechanical leaf spring suspension ensure stability over harsh road conditions.

Advanced Anti-Corrosion Treatment

Complete chassis shot-blasting plus anti-rust primer and durable polyurethane finish for extended service life.

Optimized Load Distribution

Engineered frame structure ensures balanced weight distribution, protecting tires and reducing fuel consumption per ton-kilometer.

Ready to enhance your transport efficiency?

Get a Free Quote Now

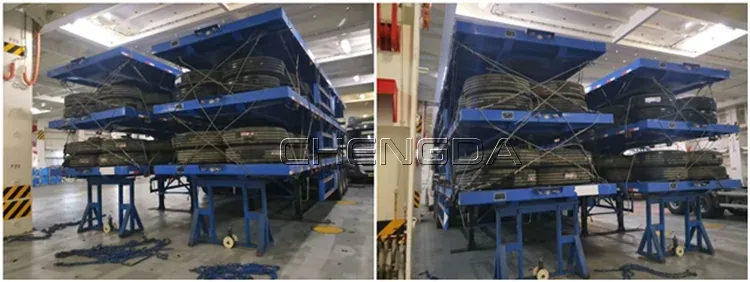

Packaging & Shipping

Packaging

Nude with waxing before shipping. Shipped by bulk ship, ro-ro ship, or flat rack container.

Shipping & Payment

Accepted terms: FOB, CFR, CIF, EXW. Payment: T/T, L/C, PayPal, Western Union, Credit Card. Multi-language support.

transportation

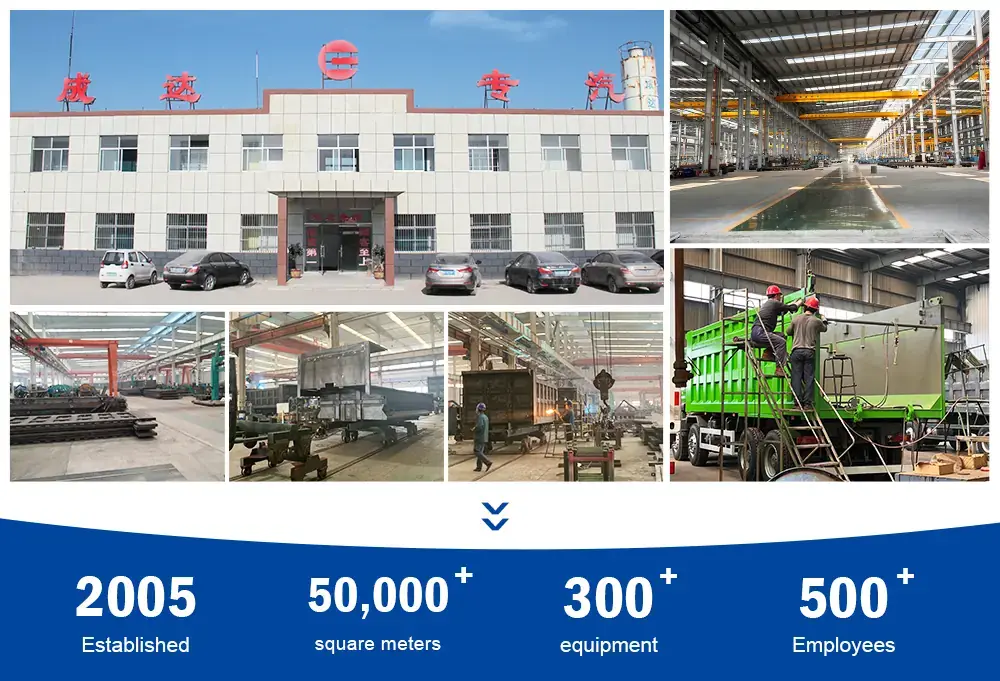

About Shandong Chengda Auto Sale Co., Ltd.

Who We Are

Established in 2005, a qualified manufacturer of trailers and semi-trailers with integrated production, R&D, and professional sales teams. Annual export value above 50 million dollars, revenue nearly 600 million RMB.

Global Partners

Long-term business relationships with SINOTRUK, SHACMAN, FAW, DFAC, XUGONG Group, LIUGONG Group, SEM Group, and mature after-sales systems to meet different customer needs.

company

Customer Visits & Certificates

Customer Visits

Customers from more than 80 countries visit us — from East Africa, West Africa, South America, Asia, and beyond.

Certificates

Full export documentation, ISO quality management certificates, and GCC/CCC compliance documentation for quick customs entry and local operations.

visitor

certificate
